Shields Dead Center Jig (Anchor Bolt Locating Jig)

Shields Dead Center Jig (SDCJ-1)

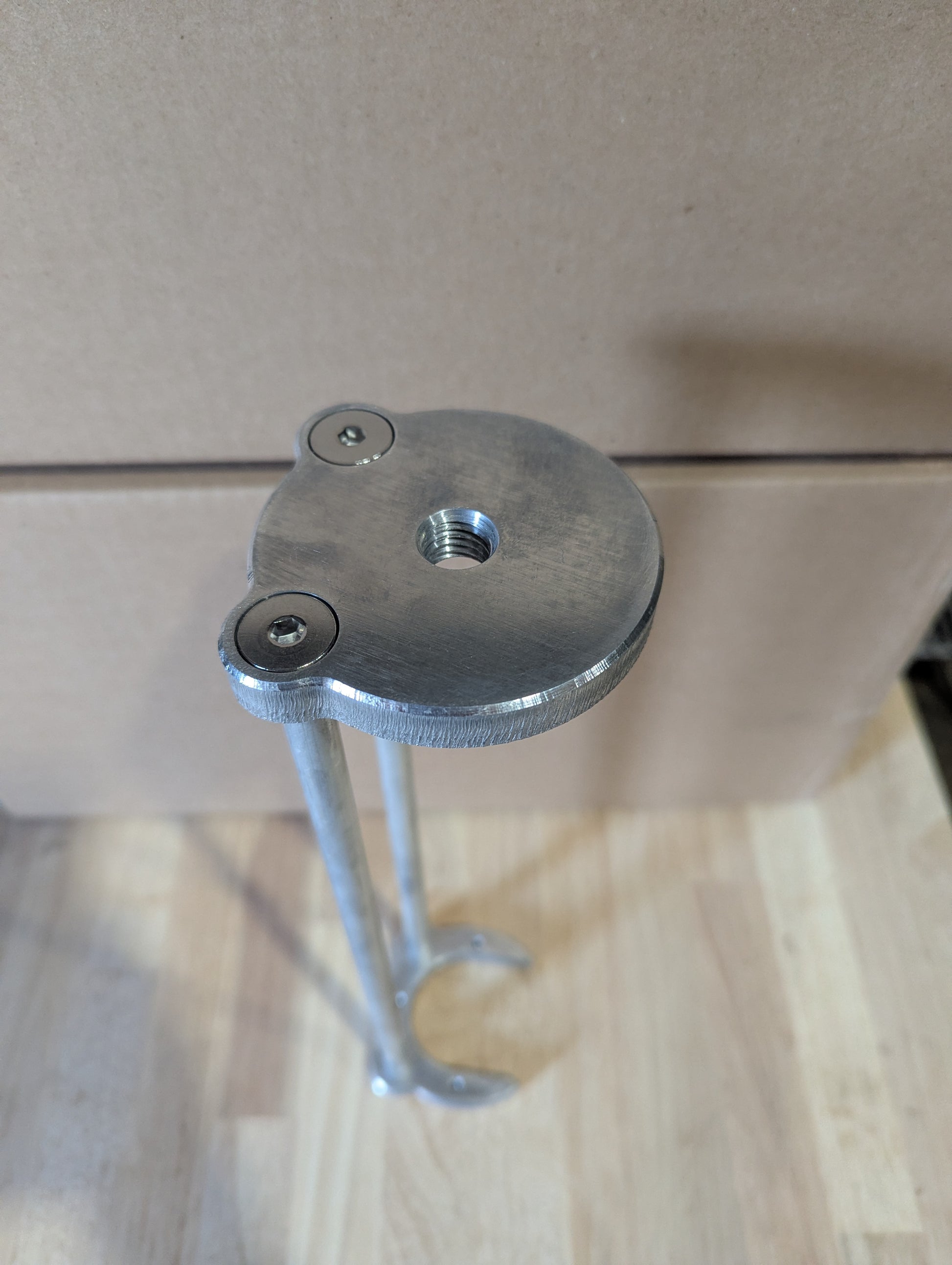

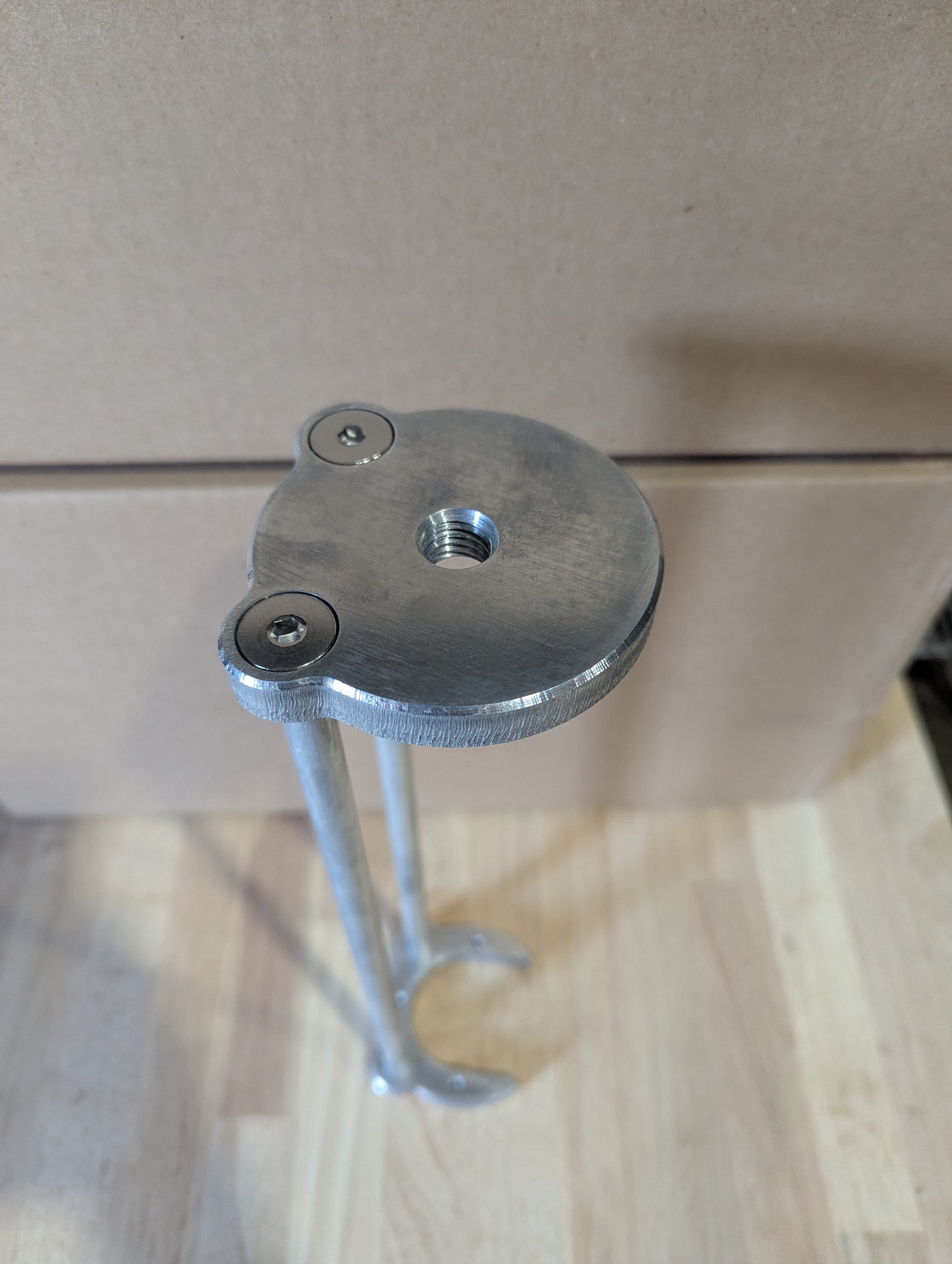

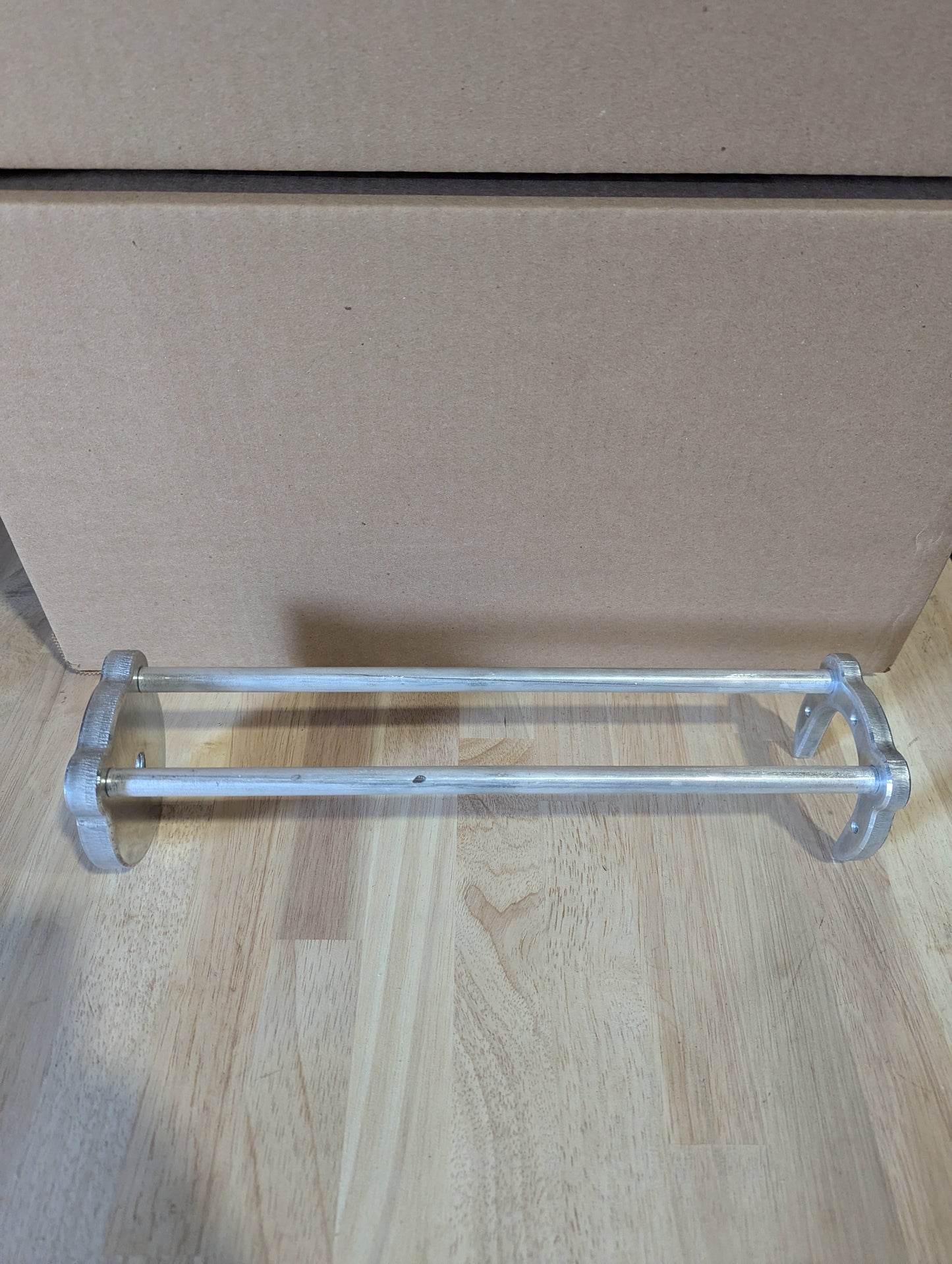

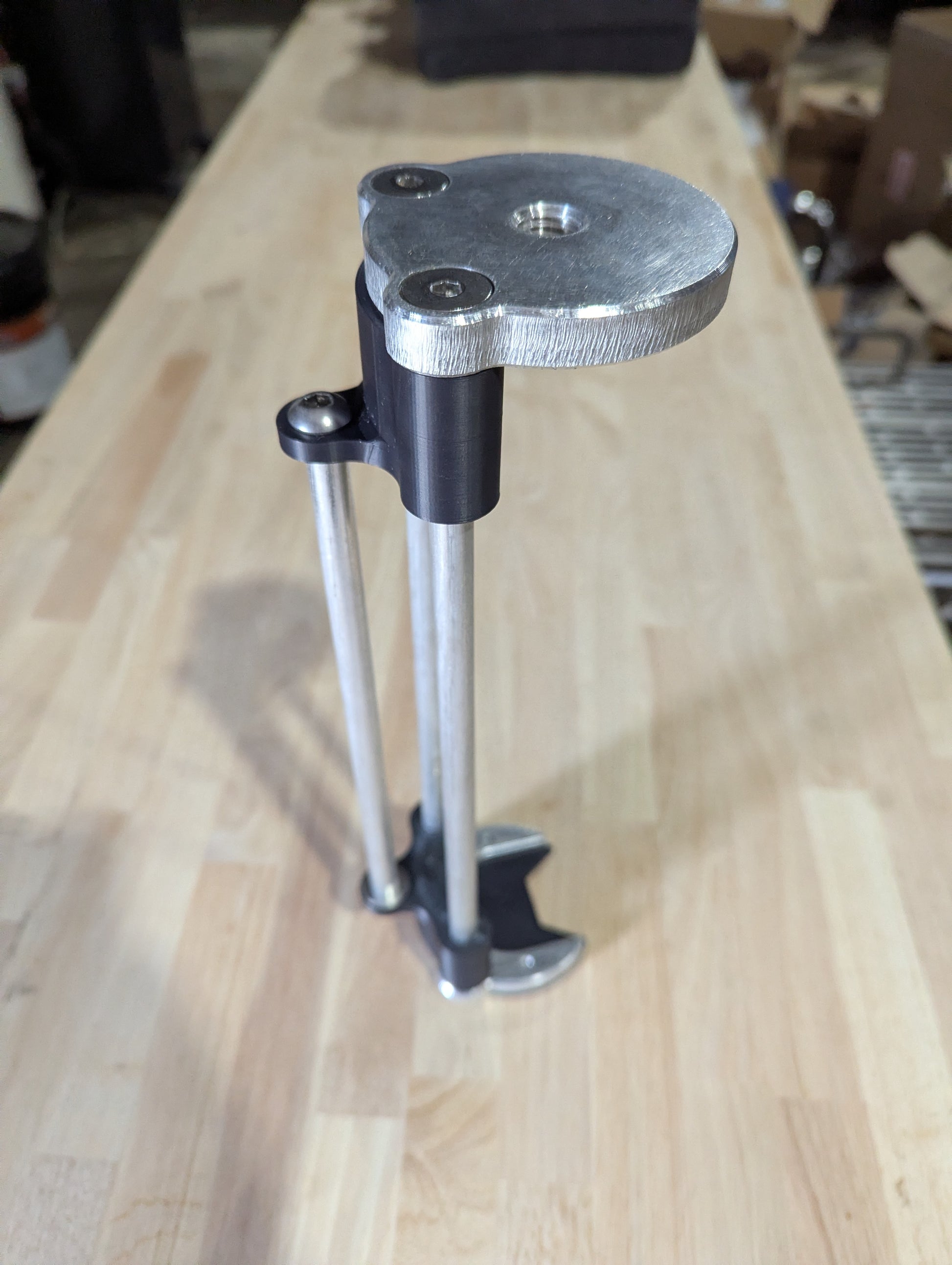

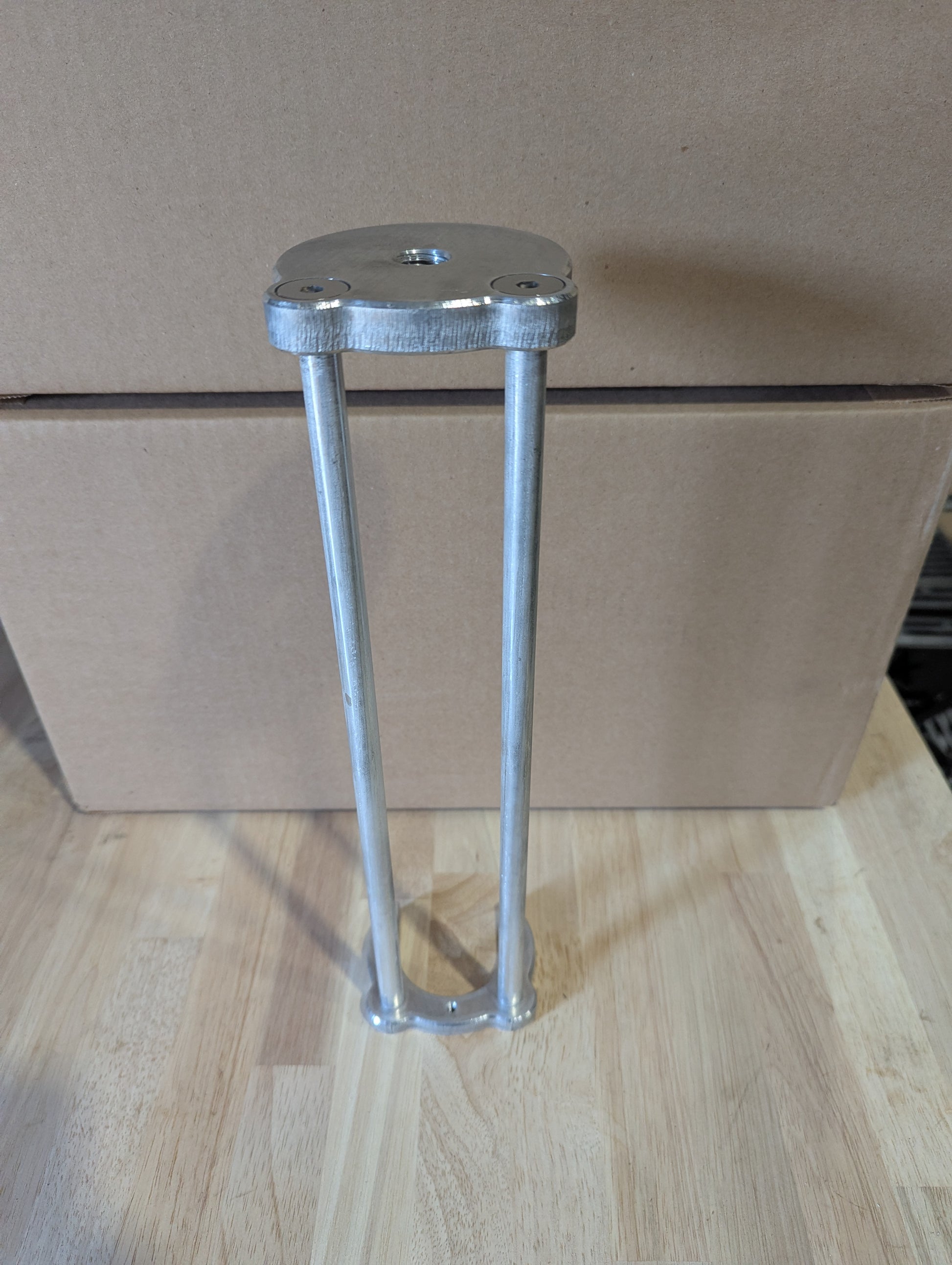

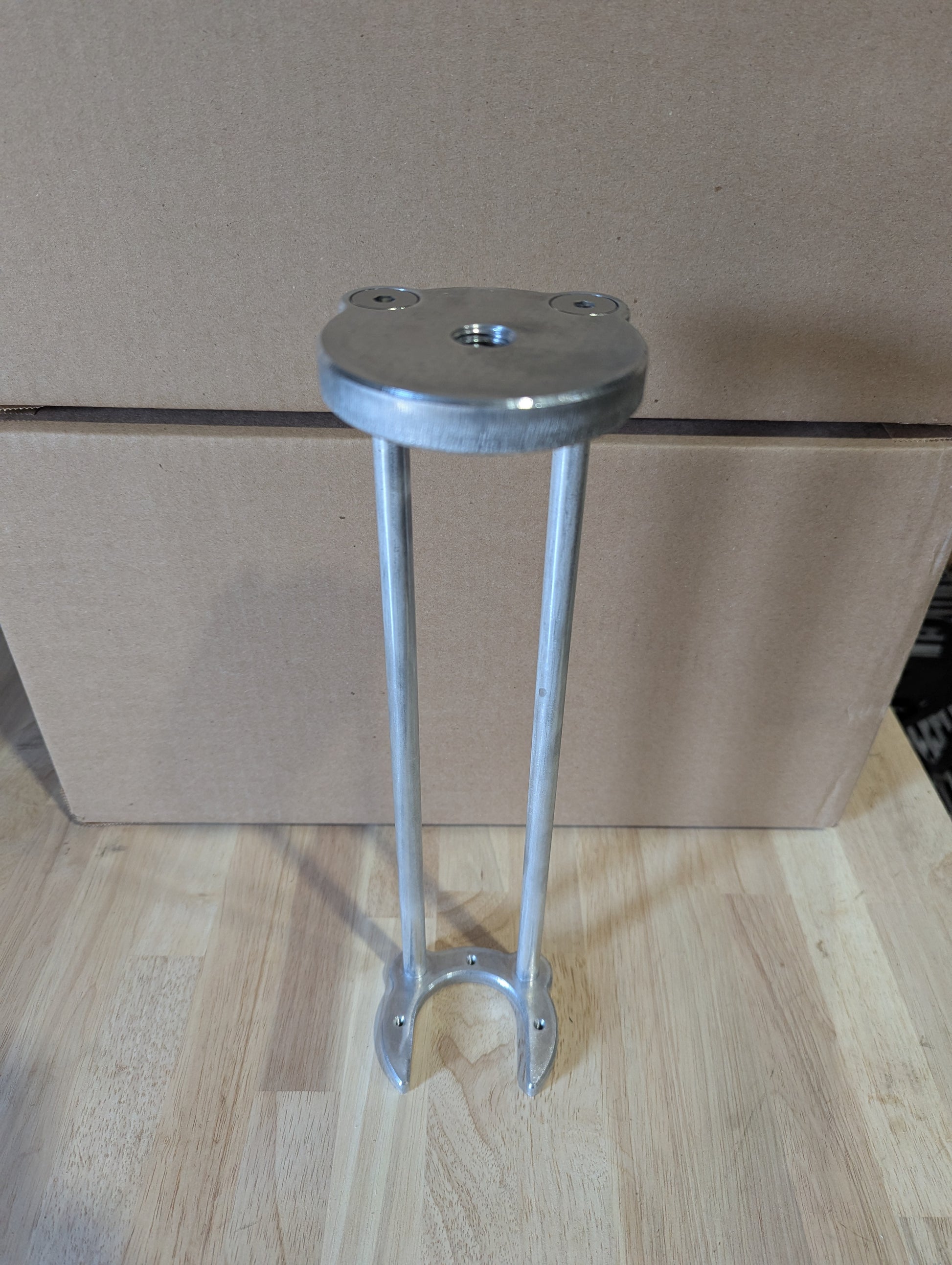

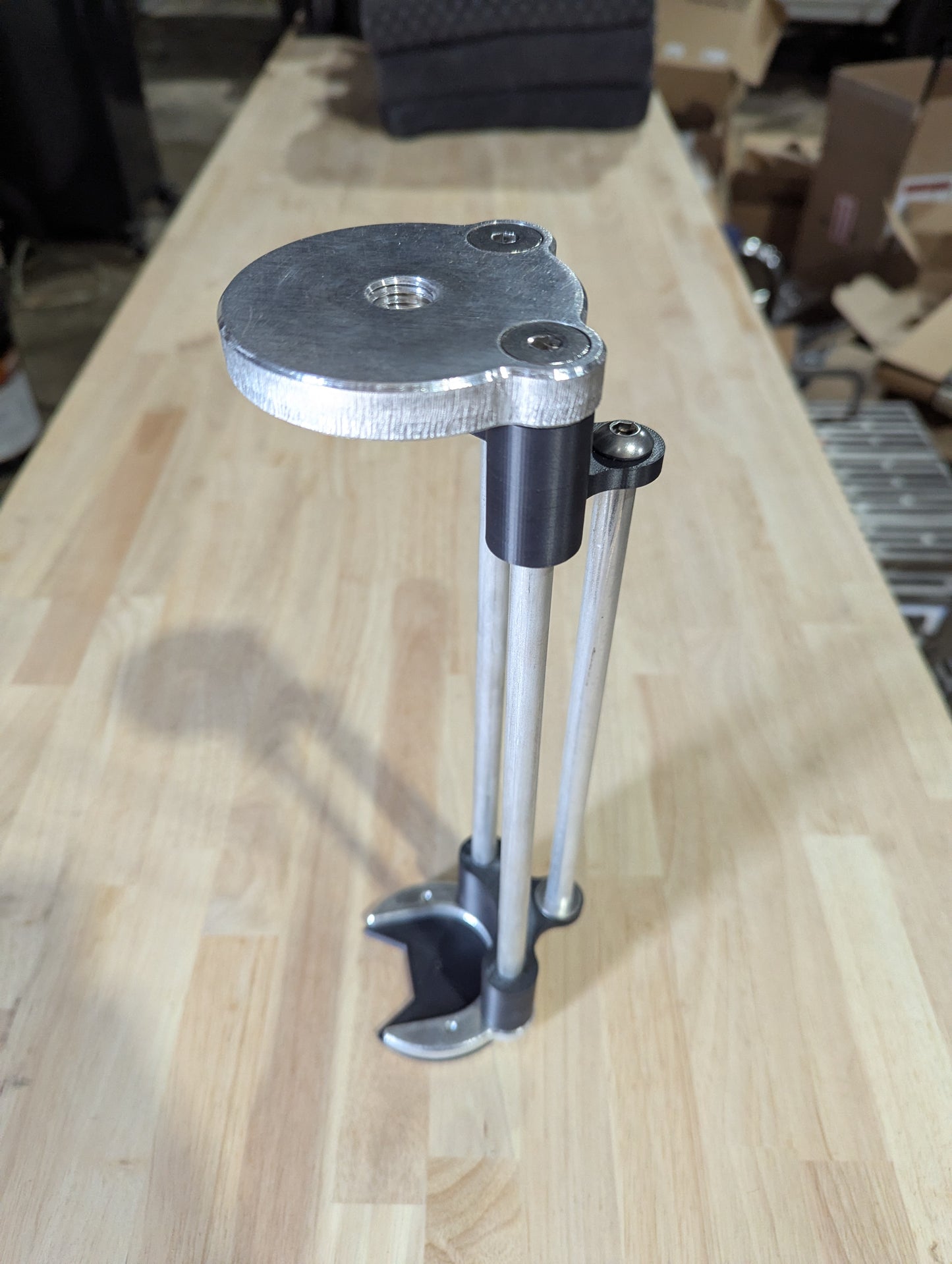

The Shields Dead Center Jig is the first product in our Dead Center Assurance Solution line — purpose-built for surveyors who need a fast, reliable way to locate the center of bent  or leaning anchor bolts.

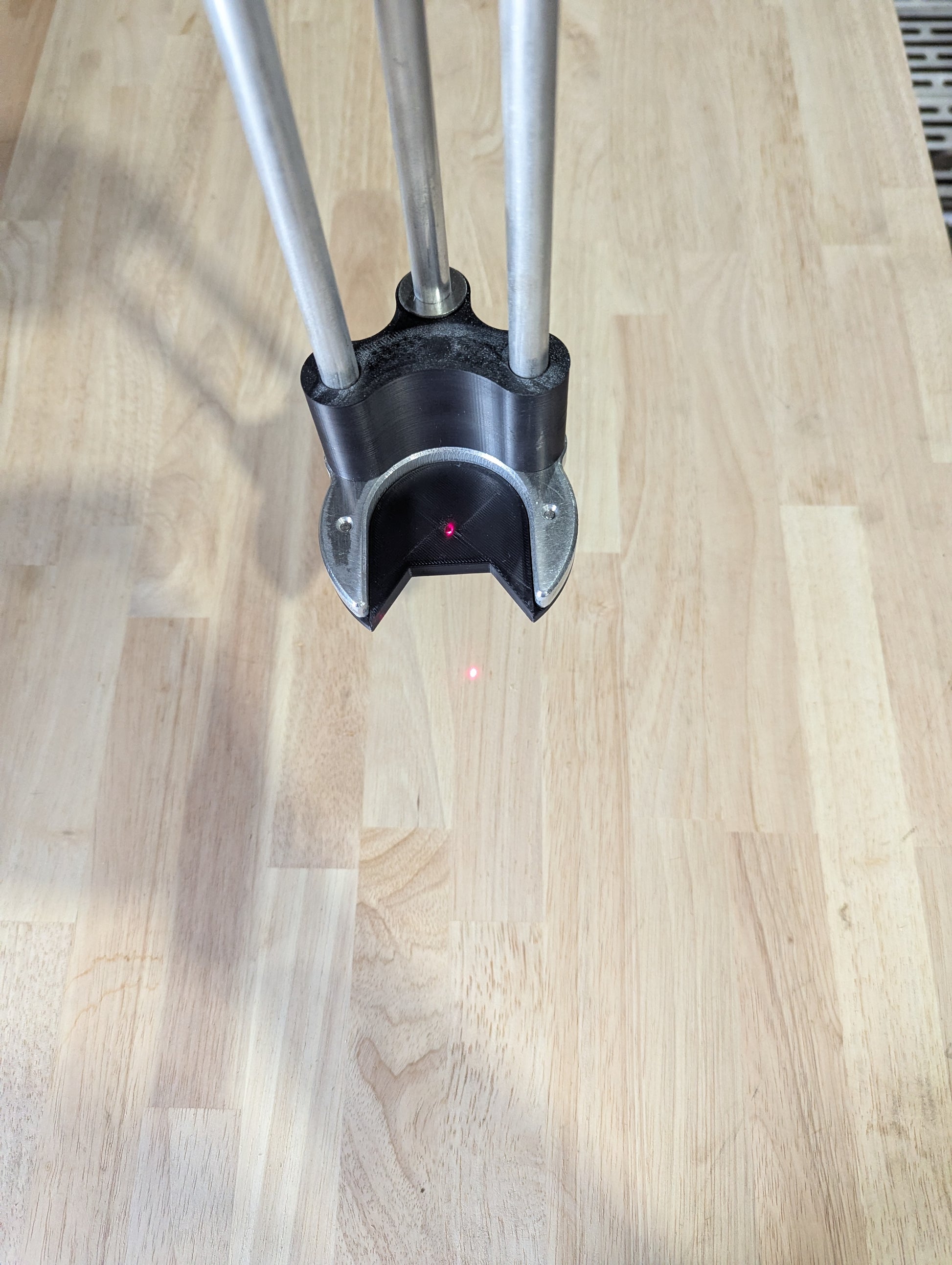

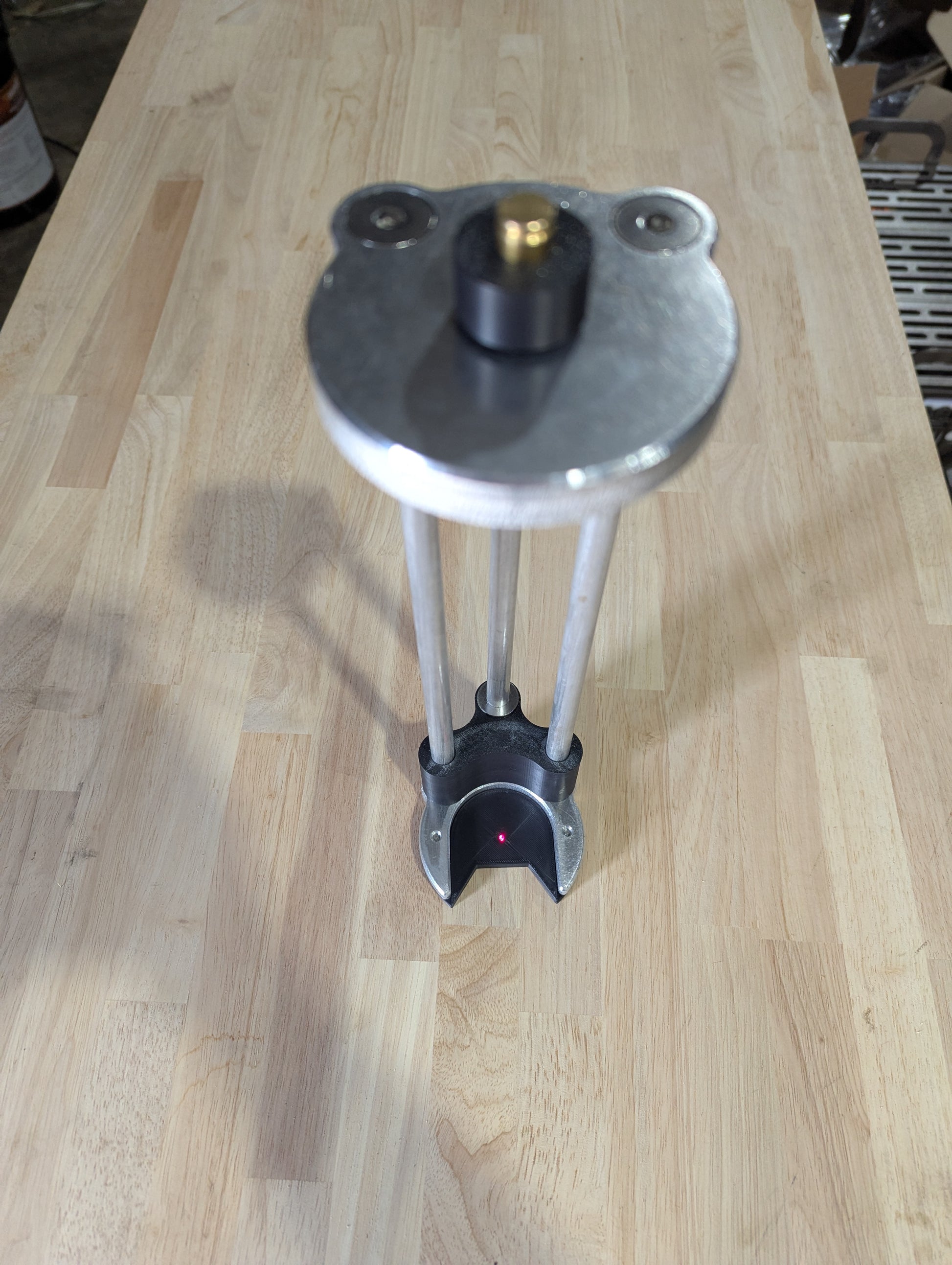

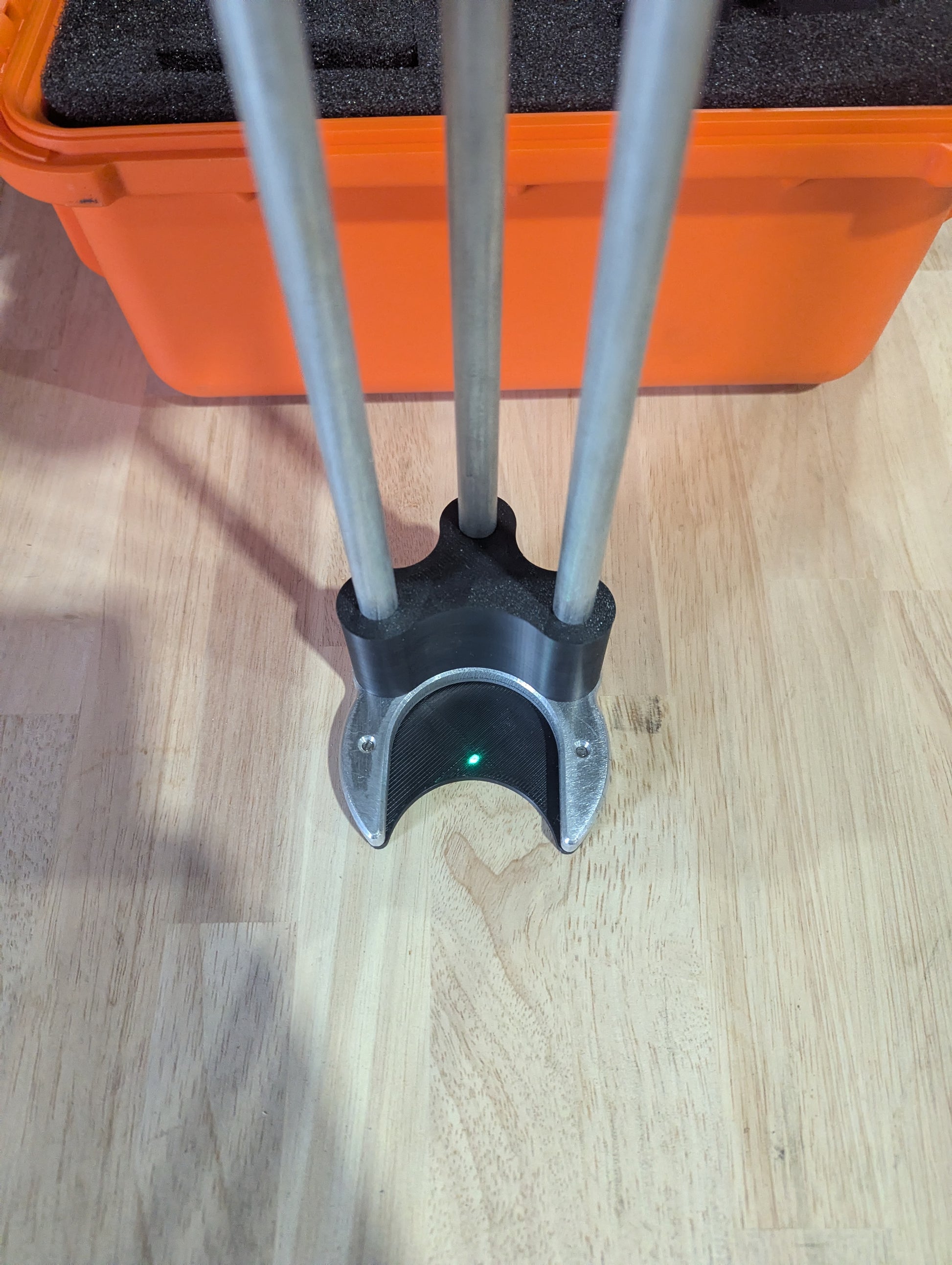

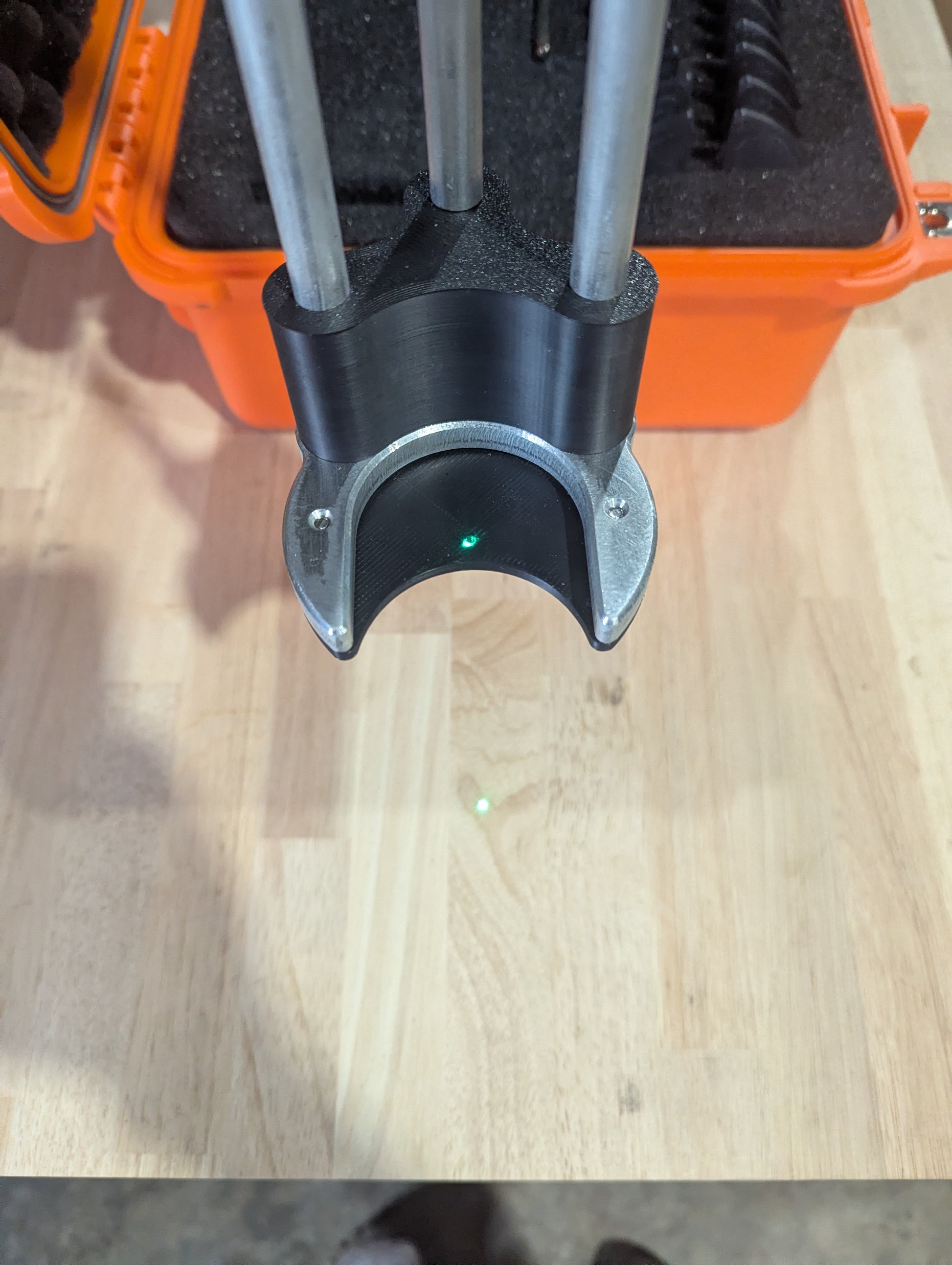

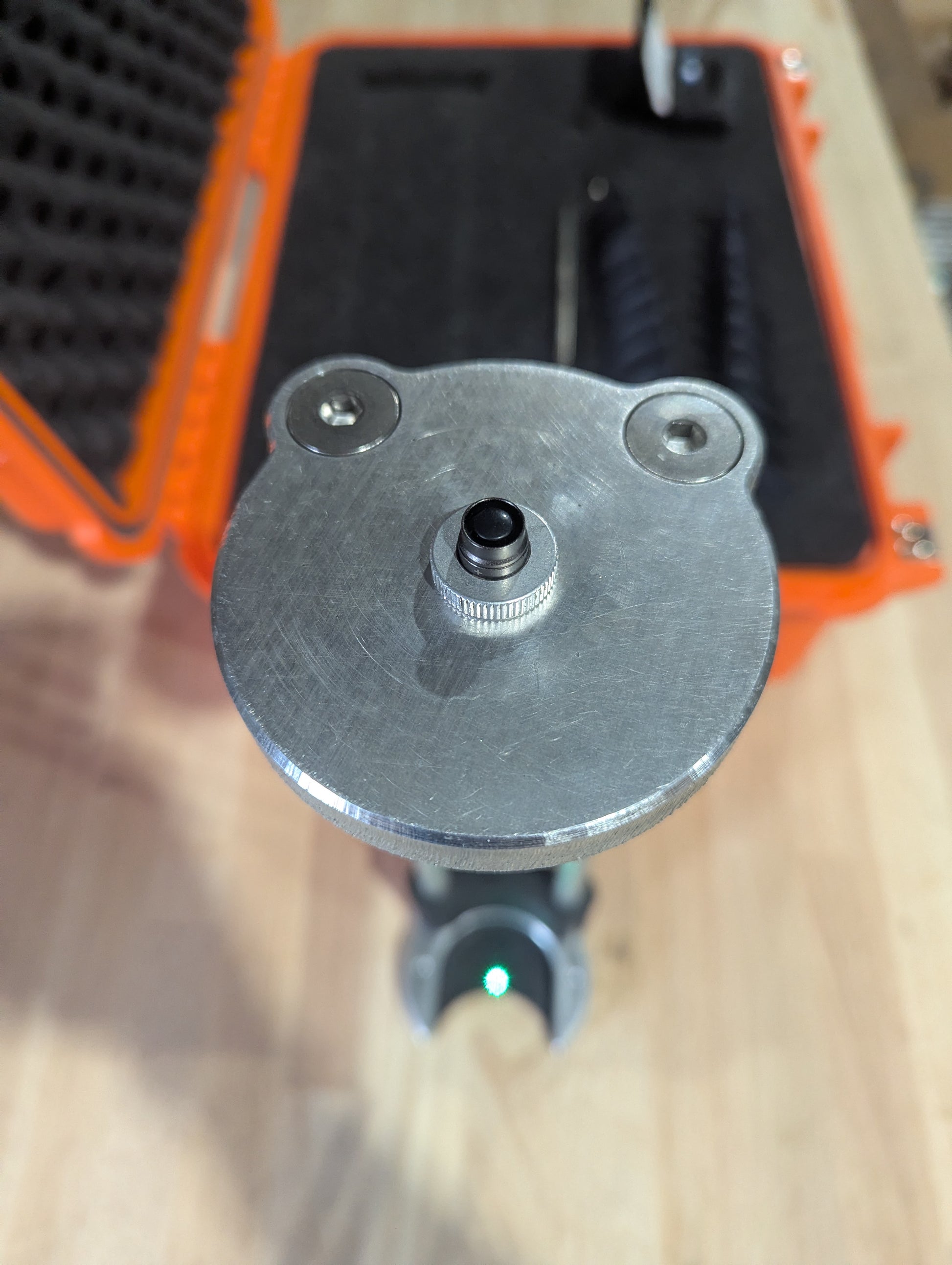

Adjustable from ½" to 2" diameter anchor bolts with up to 12" of stick-up, this jig offers the versatility to handle a wide range of field conditions. Bottom plates are available in ⅛" increments and include a plumbing plate, laser plummet, and shim pack for precision alignment. Constructed from 6061 aluminum with stainless steel hardware, it's built for durability in demanding environments. Incremental plates are manufactured from high-strength ASA plastic.

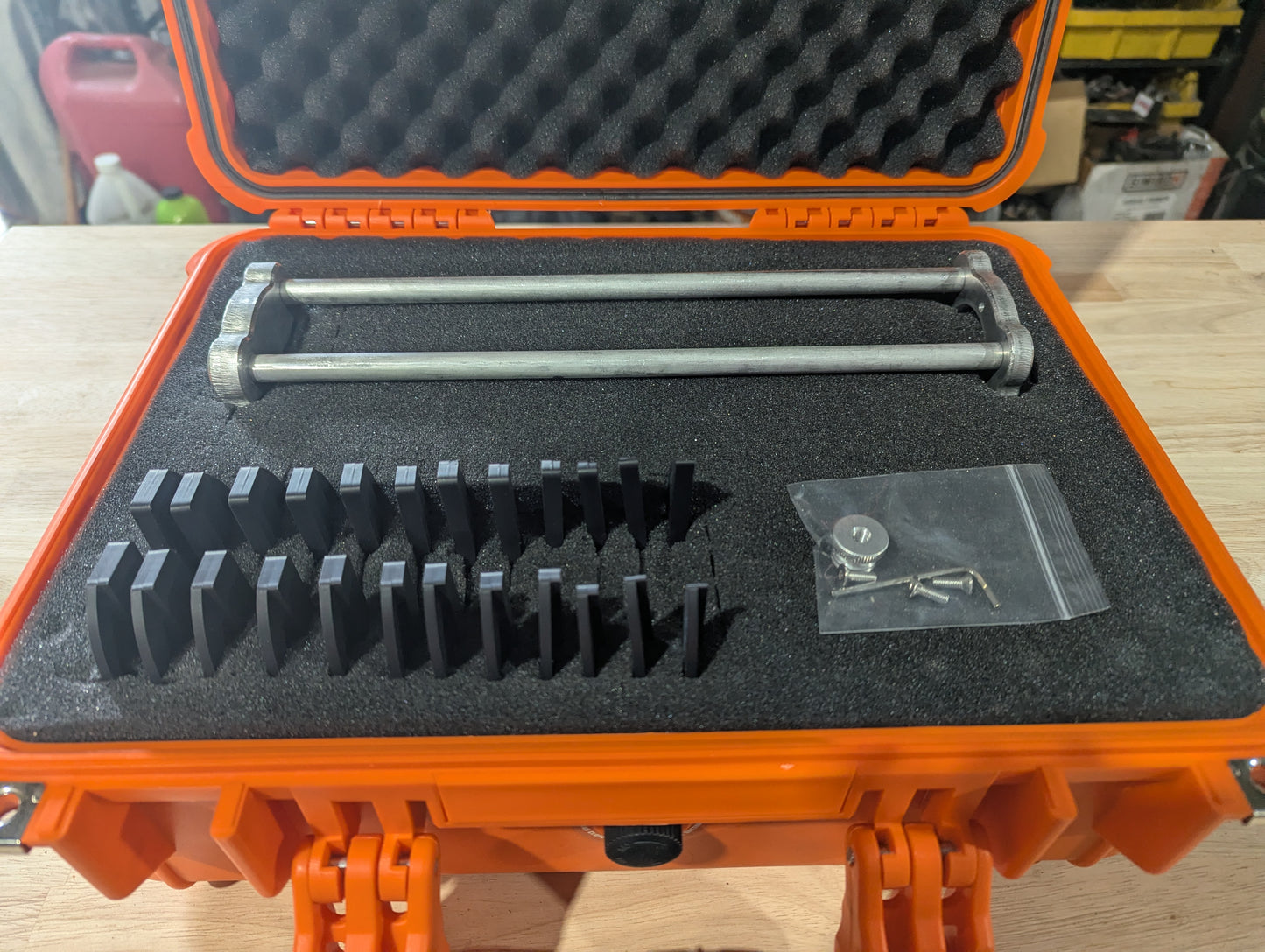

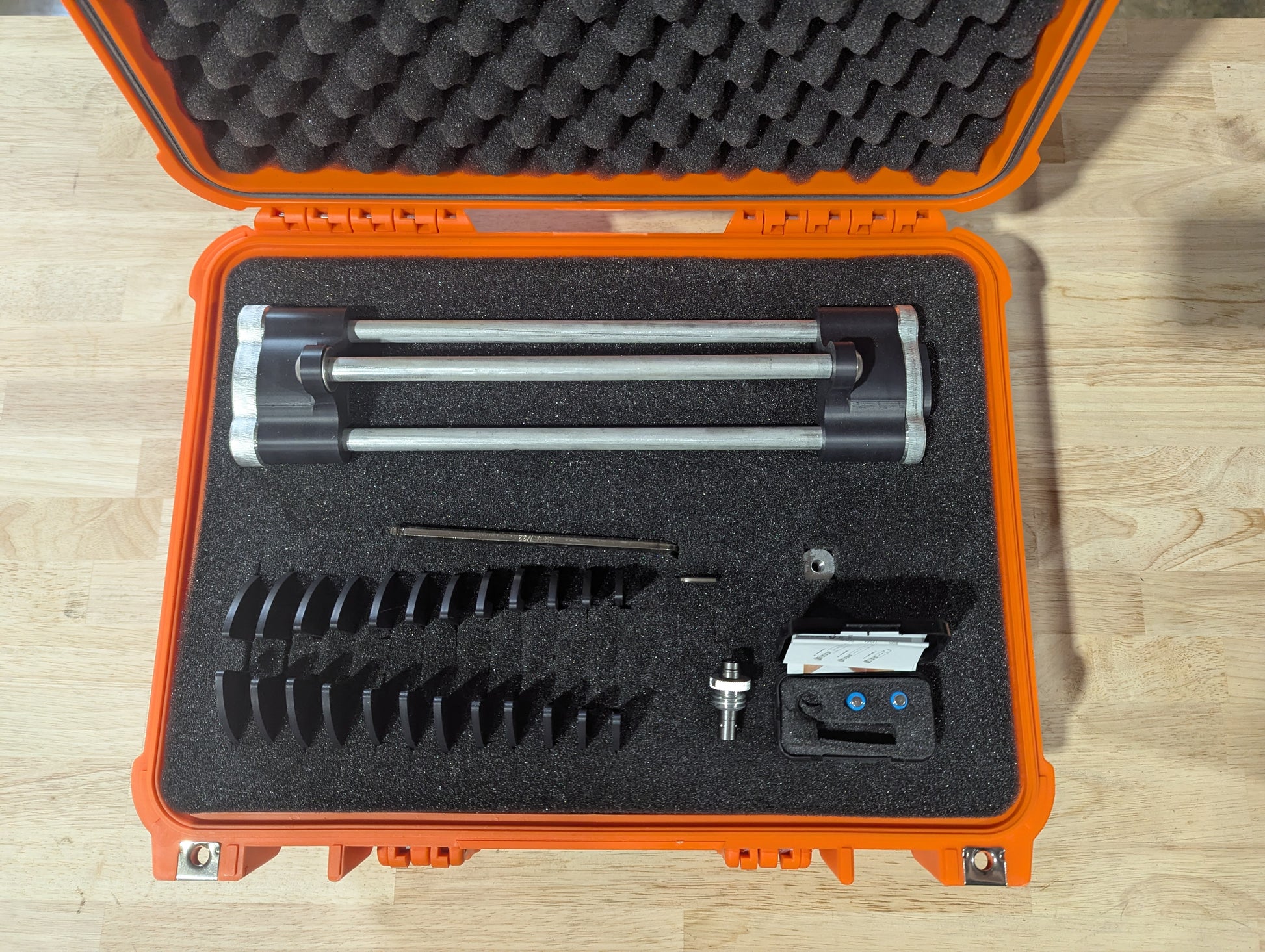

A 5/8-11 to ¼-20 adapter is included for use with a mini prism. Everything ships in a weather-resistant orange carrying case.

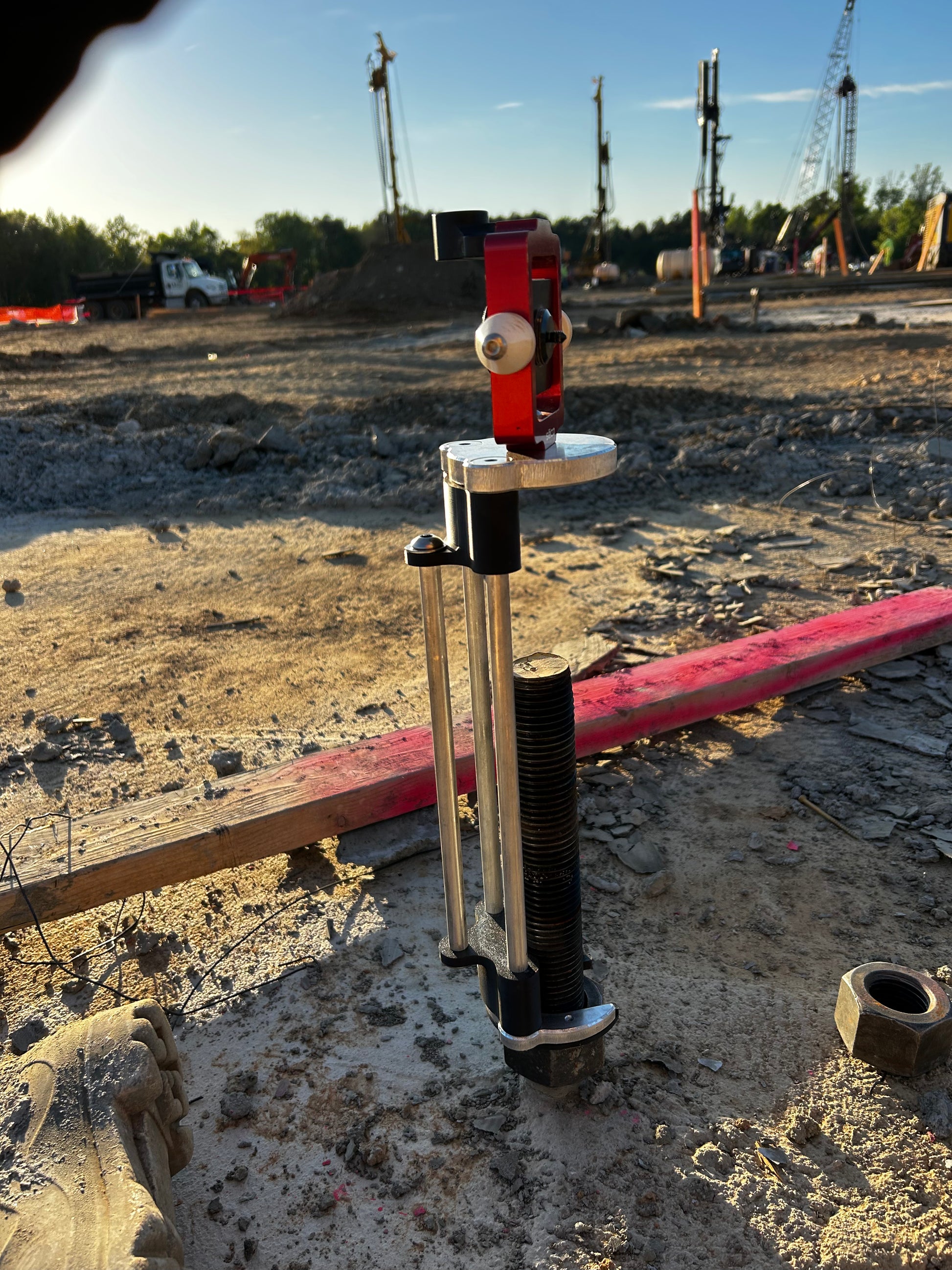

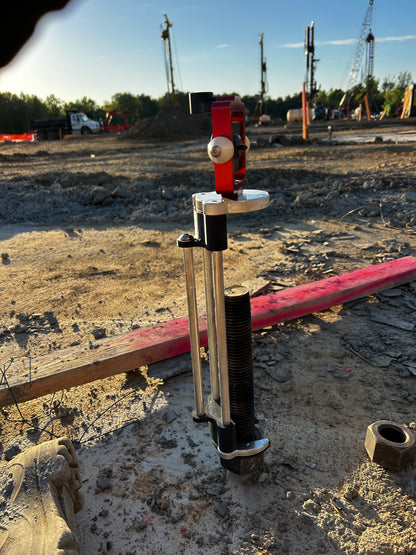

Save time and eliminate frustration on your next anchor bolt as-built survey.

Prism not included.

Lead times are currently up to 2-3 weeks. For quantity orders, contact us directly.

Free Shipping!
